Pitwall k6 Report

Version updated for https://github.com/florin-stefan/pitwall-k6 to version 0.3.0.

  • This action is used across all versions by 0 repositories.

Action Type

This is a Composite action.

Go to the GitHub Marketplace to find the latest changes.

Action Summary

This GitHub Action, Pitwall-k6, automates the process of generating and serving a comprehensive HTML report from k6 load test results. It parses various output formats (raw JSON stream, summary files) to reconstruct detailed metrics including thresholds, checks, and pass/fail verdicts. The generated report includes charts for trends across runs and a glossary of key metrics. Users can easily serve the report locally or directly in their web applications, making it accessible without additional backend infrastructure.

What’s Changed

The first public release of Pitwall — a complete, portable HTML report for k6 load tests. Point it at the output k6 already produces and get a static site with the full metrics breakdown, pass/fail verdicts, trend charts across runs, and a plain-language glossary. No backend, no CDN calls, no telemetry — host the folder anywhere.

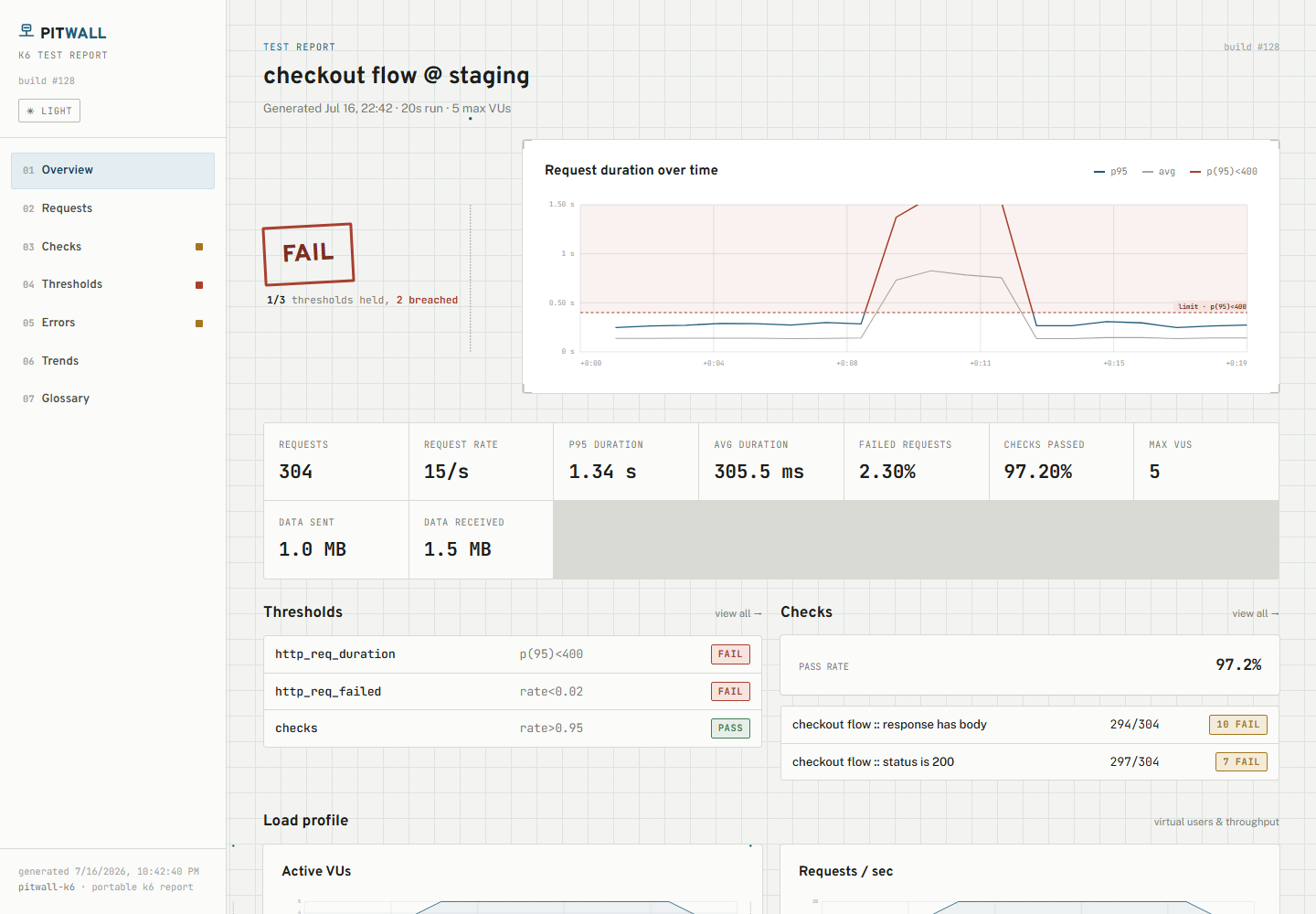

Pitwall report overview

🔗 View a live sample report

Use it as a GitHub Action

Run k6 first (e.g. with grafana/setup-k6-action), then:

- uses: florin-stefan/pitwall-k6@v0.3.0
  with:
    results: results.json summary.json
    name: checkout flow
    run-id: ${{ github.run_number }}
    fail-on-thresholds: true

- uses: actions/upload-artifact@v4
  if: always()
  with:
    name: pitwall-report
    path: pitwall-report

The action installs Pitwall, generates the report, appends a run summary (verdict, headline stats, thresholds, slowest endpoints) to the job summary page, and — with fail-on-thresholds — gates the job on breached thresholds after the report is written, so a red build still has the full report as an artifact.

Use it as a CLI

k6 run --out json=results.json script.js
pitwall serve results.json

Works with the raw --out json= stream (plain or gzipped), a handleSummary() export, a --summary-export= file, or any combination — formats are auto-detected.

Highlights in 0.3.0

  • pitwall diff <baseline> <current> — compare two runs: headline deltas, per-endpoint p95 changes, new/removed endpoints. --fail-on-p95 <pct> and --fail-on-error-rate <points> turn it into a CI regression gate that catches drift before it breaches a threshold; --md writes the comparison as PR-ready markdown.
  • GitHub Action (this listing) with threshold gating and automatic job summaries.
  • Multi-run trend history — every generate appends to a small history file; the Trends page charts p95, error rate, throughput, and checks across your last runs, and the overview shows run-over-run deltas.
  • CI on Node 18/20/22 (Linux + Windows), plus a security policy, contributing guide, and issue templates.

Docs

Requirements: Node ≥ 18 for the CLI; the action runs on any standard GitHub-hosted runner. npm package publication is coming — until then, the action is fully self-contained, and the CLI works from a clone (npm install && npm link).
